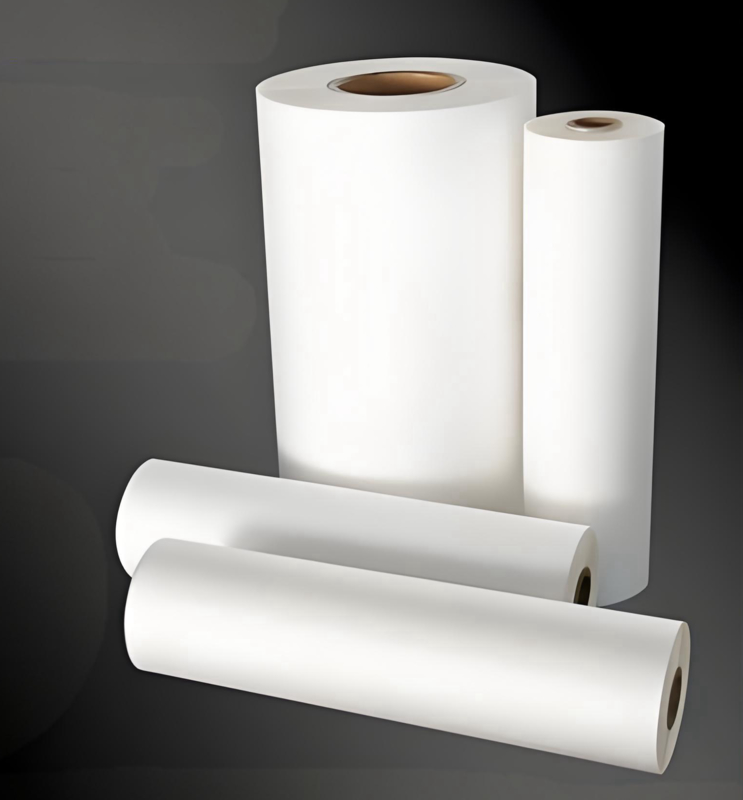

Name: Soft Hardness Thermal Lamination Film with 10mm - 1780mm Width for Digital Lamination
Brand: GUANGDONG NEW ERA COMPOSITE MATERIAL CO., LTD.
SKU: Суперсклеивание против царапин
Price: 1,499.18 USD
Availability: InStock

Главная страница Продукция Анти- фильм скреста

Soft Hardness Thermal Lamination Film with 10mm - 1780mm Width for Digital Lamination

Подробная информация о продукте:

Место происхождения:	Гуандун, Китай
Фирменное наименование:	NEi
Сертификация:	SGS, ISO
Номер модели:	Суперсклеивание против царапин

Оплата и доставка Условия:

Количество мин заказа:	1 рулон
Упаковывая детали:	бумажные картоны
Время доставки:	10 дней
Условия оплаты:	T/T.
Поставка способности:	10000TONS

контакт

Подробное описание продукта

Поверхность:	Гладкий	Толщина:	30micron
антиотпечатки пальцев:	НЕТ	Твердость:	Мягкий
Прозрачность:	100%	Длина:	100м - 3000м
Материал:	Бопп	Приложение:	ЦИФРОВОЕ ЛАМИНИРОВАНИЕ
Ширина:	10 мм - 1780 мм
Выделить:	Soft Hardness Thermal Lamination Film , 10mm - 1780mm Width Anti Scratch Film , Digital Lamination BOPP Film

Super Bonding Scratch-Resistant Thermal Lamination Film

Industrial-grade durability for everyday surface protection with ultra-strong adhesion and scratch resistance.

Key Features

Ultra-strong adhesion: Bonds securely to plastic, metal, and paper substrates
Scratch & wear resistance: Withstands daily friction and sharp object contact
Easy thermal application: Compatible with most thermal laminators for fast processing

Technical Specifications

Adhesion strength: 8N/25mm (exceeds industry standard of 4N/25mm)
Temperature range: Stable performance from -10℃ to 65℃
Surface hardness: 4H rating with 3μm hardened coating
Lamination speed: Up to 1.5m/min for production efficiency

Ideal Applications

Industrial signs and equipment labels
Electronic panels and control surfaces
High-end packaging and retail displays
Architectural drawings and important documents

Performance Benefits

Reduces replacement frequency by 5x compared to standard films
Eliminates bubbling and delamination issues
Withstands 1,000+ cycles of steel wool friction testing (500g load)
Maintains clarity under harsh environmental conditions

SPECIFICATION

MATERIAL: BOPP
THICKNESS: 30MICRON
LENGTH: 200M, 300M, 500M, 1000M, 2000M, 3000M
CORE SIZE: 1INCH, 3INCH

TECHINICAL PARAMETERS

Numbers	Type	Parameter	Note
1	Width	Maximum 1770mm
2	Thickness	30micron
3	Length	Maximum 3000m
4	Corona	Inner: ≥38,Surface: 42
5	G/SQM	26g/ｍ²,38ｍ²/kg
6	UV	YES
7	Hot Stamping	YES
8	Surface	Strong Scratch Resistant	Not anti-fringerprint

Mechanical Property
Tensile Strength	MD	MPa	87.4	QB/T 2889-2007
Tensile Strength	TD	MPa	173.3	QB/T 2889-2007
Haze		%	80.6	QB/T 2889-2007
Thermal Property
Shrinkage	MD	%	1.03	QB/T 2889-2007
Shrinkage	TD	%	0.5	QB/T 2889-2007
Surface
Coefficient of Friction		----	0.344	QB/T 2889-2007
Surface Tension		mN/m	I.S.=40. O.S.=40	QB/T 2889-2007

SPECIAL FEATURES

The ultra matt BOPP film has a special top coated scuff-resistant finish which protects printing from scratches, minimizing the impact of scratches and abrasions on the underlying material.
Offers prolonged durability to printed materials, preventing damage, and preserving the quality of the surface.
Suitable for various applications, including signage, graphics, displays, and other printed materials that require protection against scratches.
Extends the lifespan of printed materials, especially in high-traffic or frequently handled environments.
It is suitable for spot UV, hot stamping, gluing, and screen printing.
Normal thermal and super bonding versions are both available. Normal thermal version is suitable for offset printing projects. Super bonding version is suitable all types of digital printing projects.
Special thickness versions are available upon requests.

TYPICAL APPLICATION

Luxury bags & boxes
Hard and soft book covers
Luxury packaging boxes for wine, perfumes, jewelry, luxury bags, etc.
Photo albums and magazines
Electronics packaging, such as watches, phones, etc.
Premium printing jobs

Ready to Upgrade Your Lamination?

Experience the difference with our industrial-grade thermal lamination film. Free samples available for a limited time - test the superior protection for yourself.
